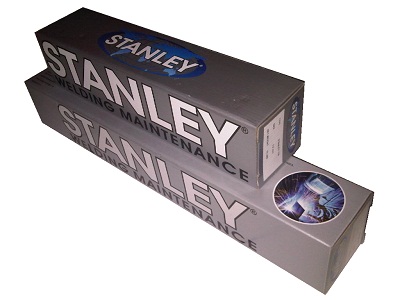

Stanley 719 MOLWherever maximum ductility is required when joining dissimilar steels to them selves or to stainless steels.
 |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
Extra strong and tough stainless steel electrode for joining steels to stainless steels.
• Highly recommended for joining hard to weld steels.
• Moisture resistant coating provides sound porosity free deposits.
• Slag is self-removing.
• Also available in TIG form as product code STANLEY 719 Mol TIG. |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
TYPICAL MECHANICAL PROPERTIES :
Undiluted Weld Metal Maximum Value Up to:
Tensile Strength 110,000 Psi ( 750 MPa )
Yield Strength 76,000 Psi ( 530 MPa )
Elongation 32%
Impact Energy 50J: 68ºF ( 20ºC )
Hardness Brinell 219, Rockwell C 14
APPLICATIONS :
Wherever maximum ductility is required when joining dissimilar steels to them selves or to stainless steels.
MICROSTRUCTURE :
Austenite with a ferrite content between 15 and 25%.
RECOMMENDED CURRENT :
DC Reverse (+) or AC
WELDING POSITIONS :
Flat, Horizontal, Vertical up, Overhead
WELDING TECHNIQUES :
Material to be welded should be clean of all contaminants. Maintain a short arc and use stringer beads rather than a weave technique. |
|
