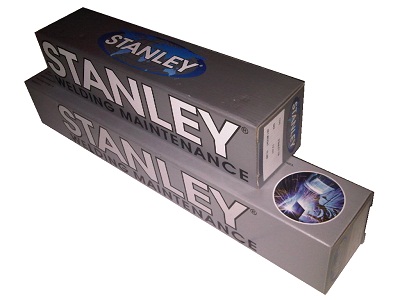

Stanley 803Ideally suited for difficult maintenance repairs. Easily welds steels that have been galvanized, painted rusted, or otherwise contaminated in service. Easy to use out of position.
 |
|
Overview |
|
Specifications |
|
Email to a Friend |
|
Adverse conditions mild steel electrode. Excels on rusty, greasy, poor fitting joints in all positions.
• Can bridge gaps as wide as 3/8 inch (9 mm).
• Slag can be welded over without removal.
• Excellent for out of position work.
|
|
Overview |
|
Specifications |
|
Email to a Friend |
|
TYPICAL MECHANICAL PROPERTIES :
Undiluted Weld Metal Maximum Value Up to:
Tensile Strength 80,000 Psi ( 570 MPa )
Yield Strength 72,000 Psi ( 510 MPa )
Elongation 28%
Impact Energy 70J: -4ºF ( -20ºC )
APPLICATIONS :
Ideally suited for difficult maintenance repairs. Easily welds steels that have been galvanized, painted rusted, or otherwise contaminated in service. Easy to use out of position.
RECOMMENDED CURRENT :
DC Reverse (+), Straight (-) or AC
WELDING POSITIONS :
Flat, Vertical up, Vertical down, Horizontal, Overhead.
WELDING TECHNIQUES :
Weld with a short-medium arc length at low amperage. When surface preparation is impractical, use a medium-long arc and favor high amperages. Multipass welds can be made without intermittent slag removal. Use any welding technique from stringer bead to wide weave.
|
|
