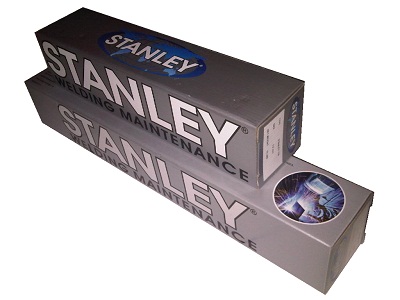

Stanley 805For high speed filleting on general purpose carbon steel plate.
|
Overview |
|
Specifications |
|
Email to a Friend |
|
A high deposition mild steel electrode for all positions.
• Weld 25% faster than other mild steel electrodes. Iron powder coating allows all position welding. Deposits are smooth and very uniform.
|
|
Overview |
|
Specifications |
|
Email to a Friend |
|
TYPICAL MECHANICAL PROPERTIES :
Undiluted Weld Metal Maximum Value Up to:
Tensile Strength 87,000 Psi ( 630 MPa )
Yield Strength 79,000 Psi ( 570 MPa )
Elongation 26%
Impact Energy 60J: 32ºF ( 0ºC )
APPLICATIONS :
For high speed filleting on general purpose carbon steel plate.
RECOMMENDED CURRENT :
DC Reverse (+), Straight (-) or AC
WELDING POSITIONS :
Flat, Vertical up, Vertical down, Horizontal, Overhead.
WELDING TECHNIQUES :
Hold a short arc length and travel as quickly as feasible. Use either a stringer or a weave technique.
|
|
